::: SERIES 0 :::
FEATURES
·Zinc finish standard
 亮锌处理
·Single ball bearing race
 单珠盘结构
·It is high capacity for swiveling
 大转动范围
·It use cold rolled steel to formed for strength
 冷轧板制造

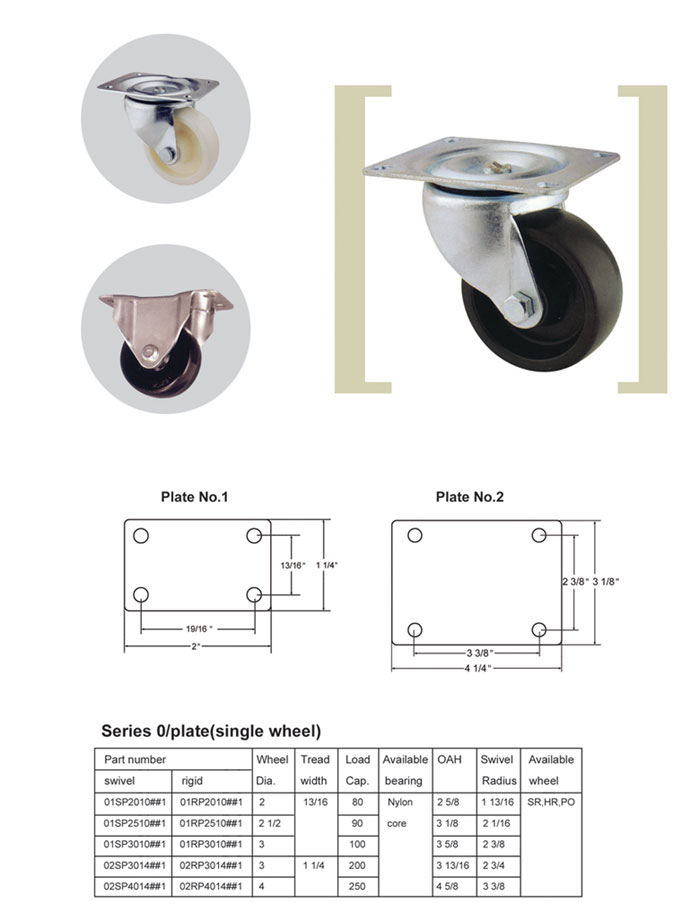

Seroes O/plate(single wheel)

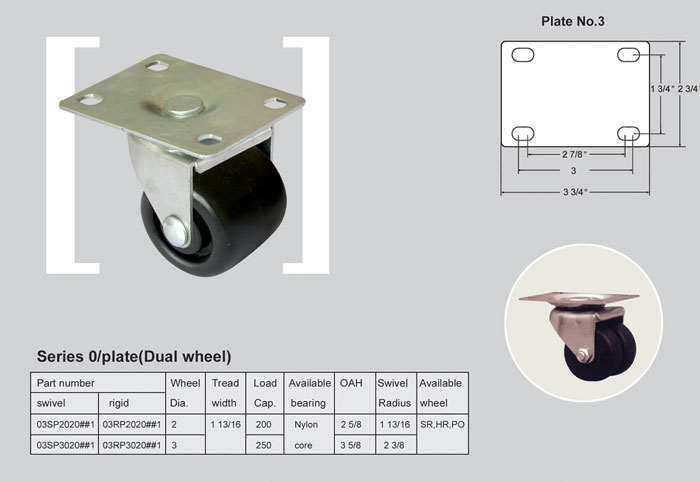

Seroes O/plate(Dual wheel)

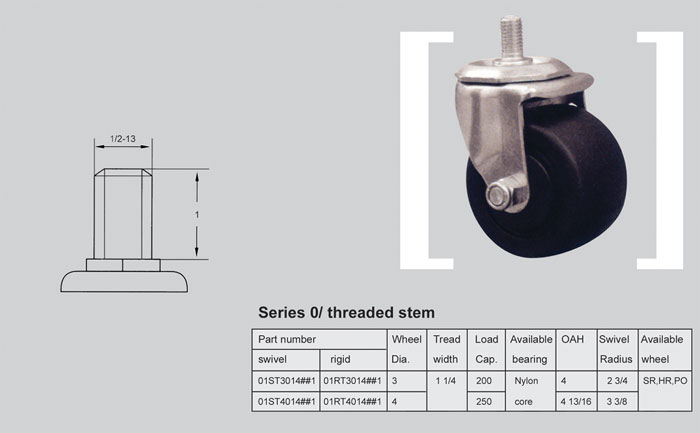

Seroes O/threaded stem

::: SERIES 1 :::
LIGHT DUTY CASTERS
·Zinc plated
 亮锌处理
·Riveded axle
 防退螺丝
·Lubricated double ball bearing raceway
 双层润滑轴承
 应用 APPLICATIONS
·Office equipment
 办公用品
·Display stands
 展示架
·Institutional,medical,& foodservice epuipment
 实验、医疗与食品设备
·Mop buckets
 拖桶
·Creepers
 铁齿板
·Other light duty applications
 其它轻负载设备

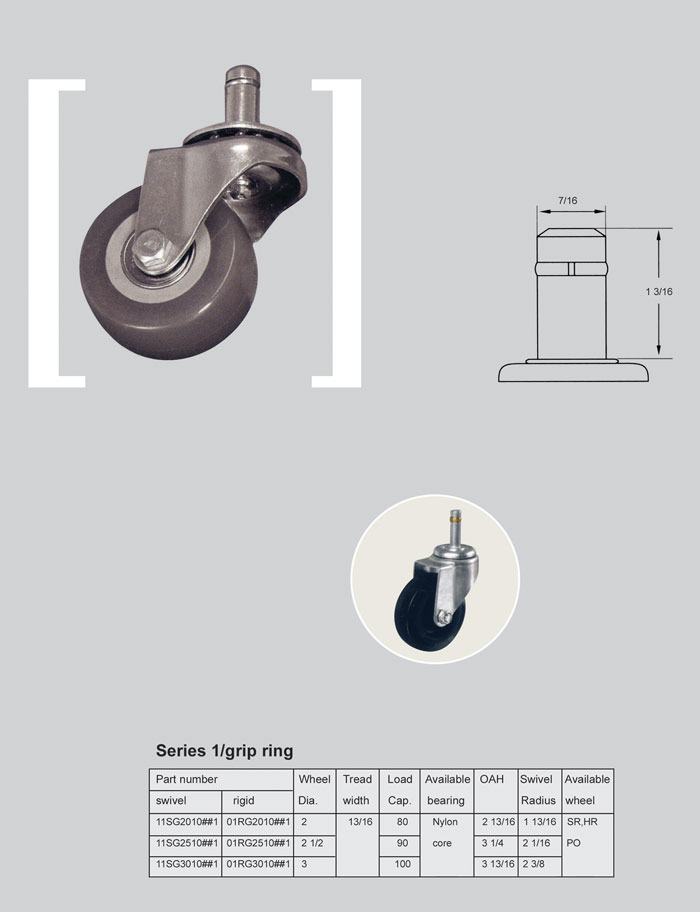

Seroes 1/grip ring

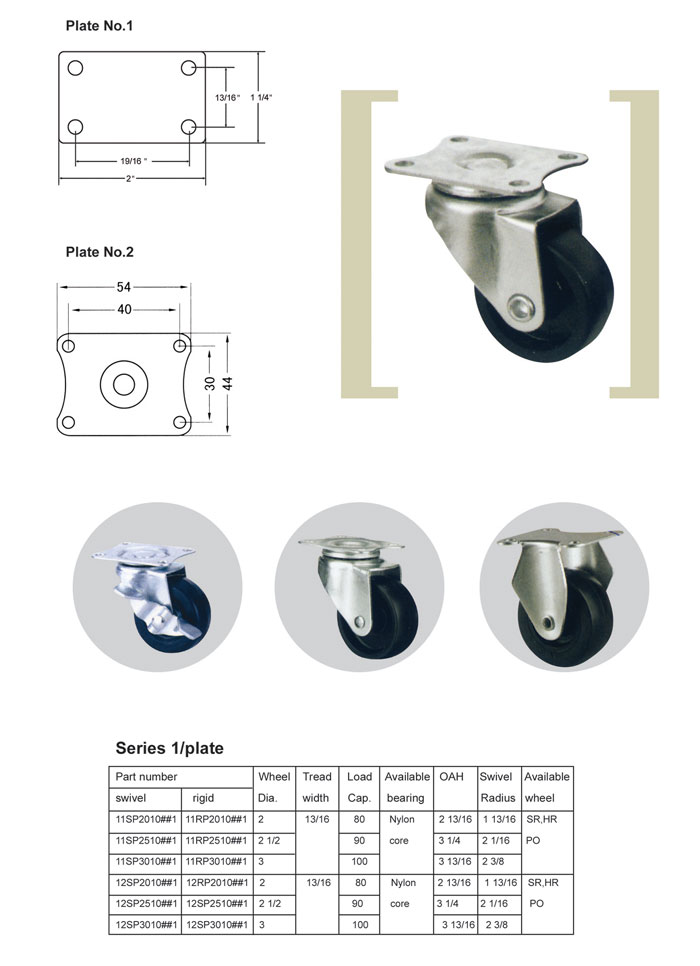

Series 1/plate

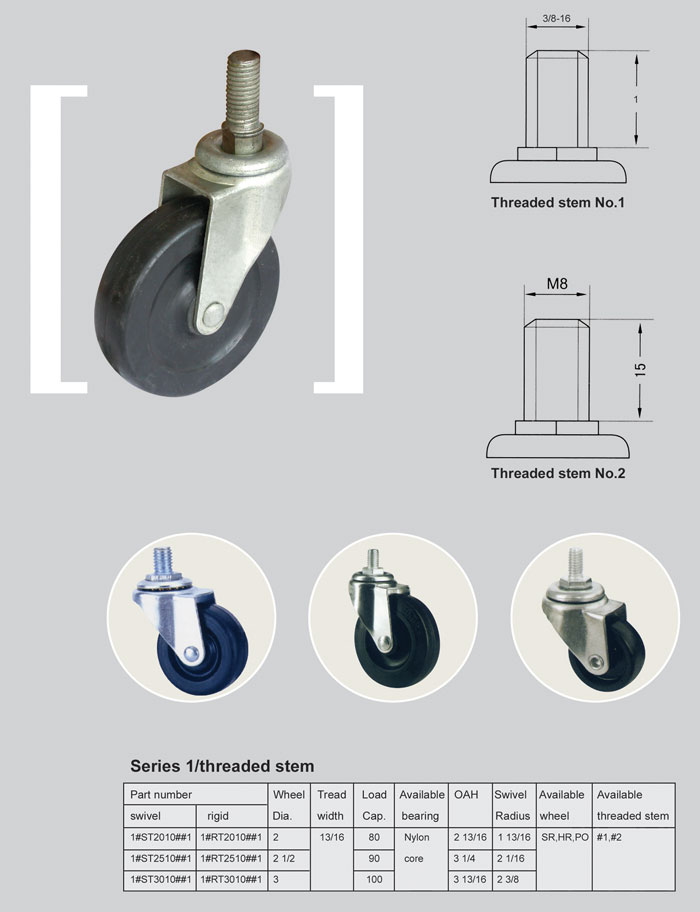

Series 1/threaded stem

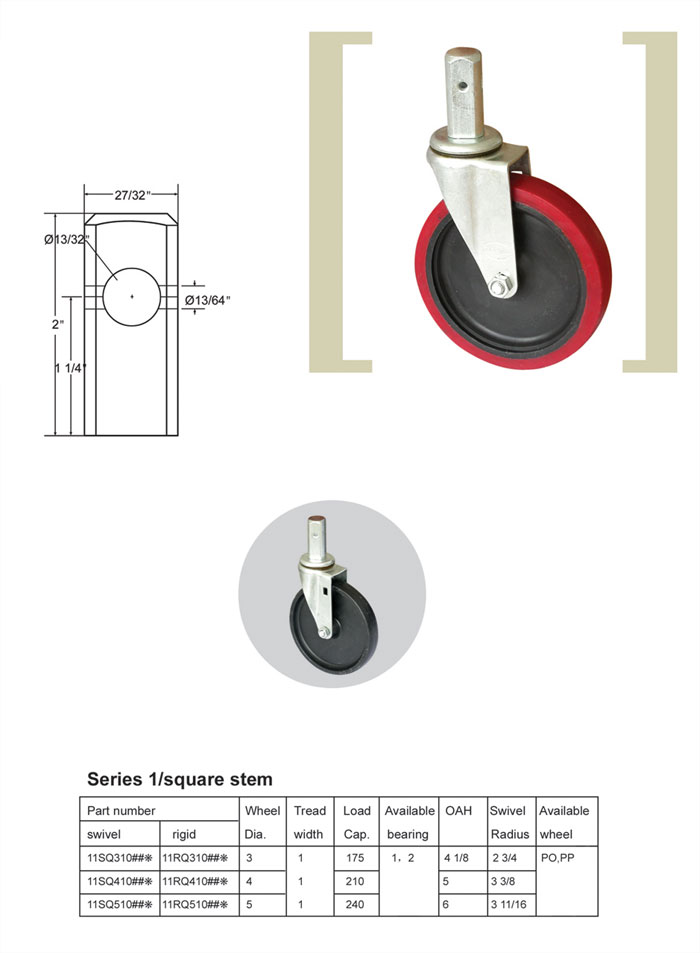

Series 1/square stem

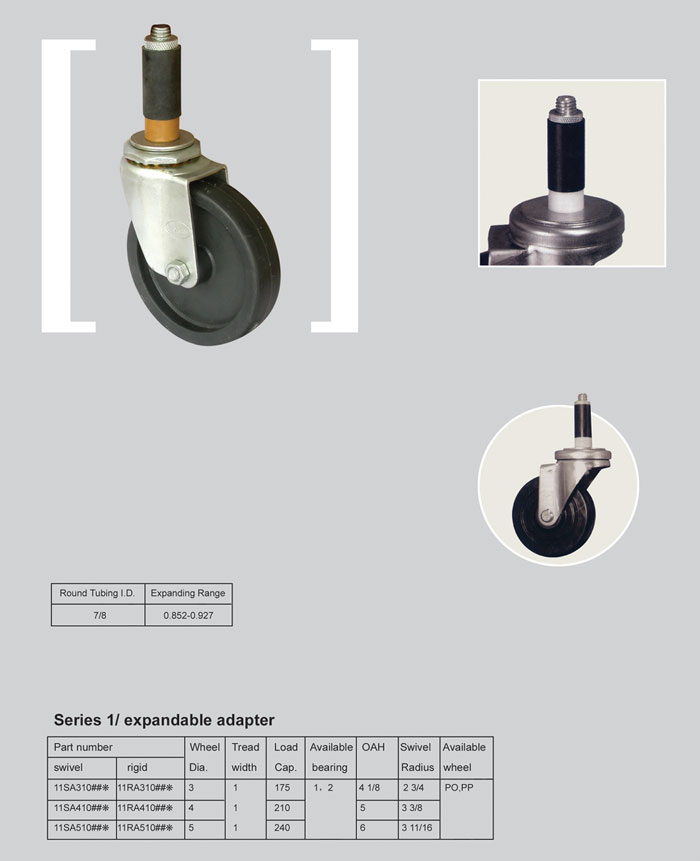

Series 1/expandable adapter

::: SERIES 2 :::
LIGHT DUTY CASTERS
·Zinc plated
 亮锌处理
·Double ball bearing raceway for long wear and  added strenght
 双珠盘轴承结构
·1/2" precision kingpin
 1/2" 规格铆钉
·Economical and highy versatile caster series
 经济及多用途系列
·Wide selection fo wheels for a range of      applications
 应用 APPLICATIONS
·Light to medium duty material handling
 轻、中型负载材料移动设备
·Bakery equipment
 面包房设备
·Storking carts
 储物车
·Moving dollies
 移动滚轮
·Food service operations
 食品服务用具
·Maintenance carts
 保养车
·Office equipment
 办公设备
·Laboratory equipment
 实验室设备
·Institutional equipment
 科研设备

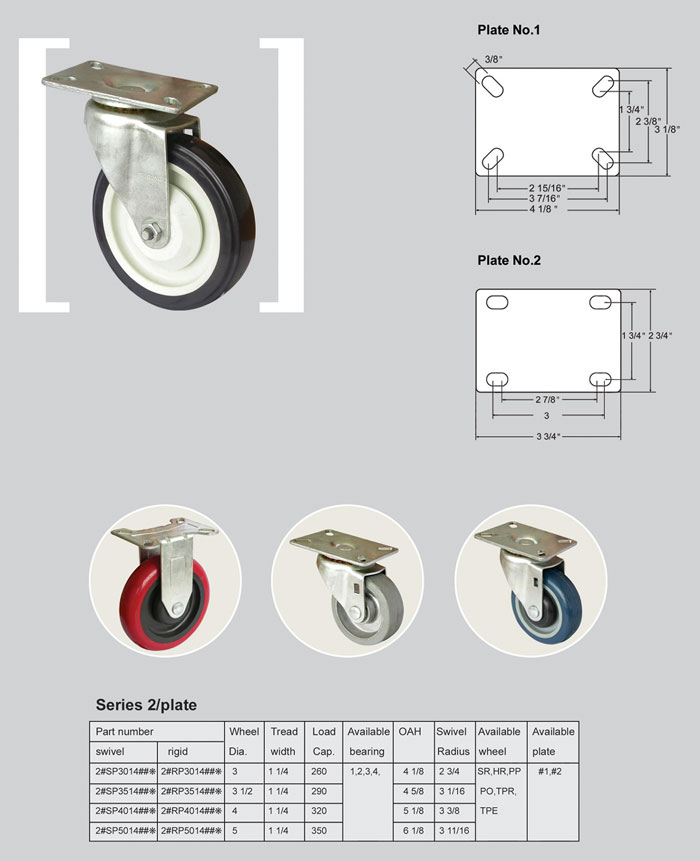

Series 2/plate

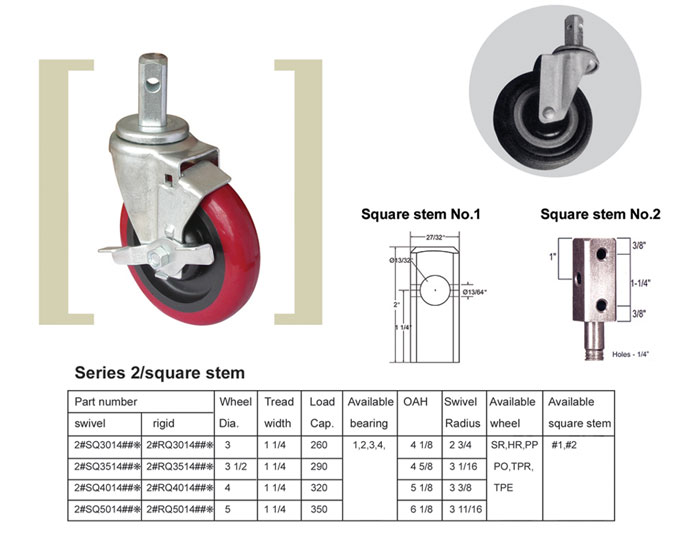

Series 2/square stem

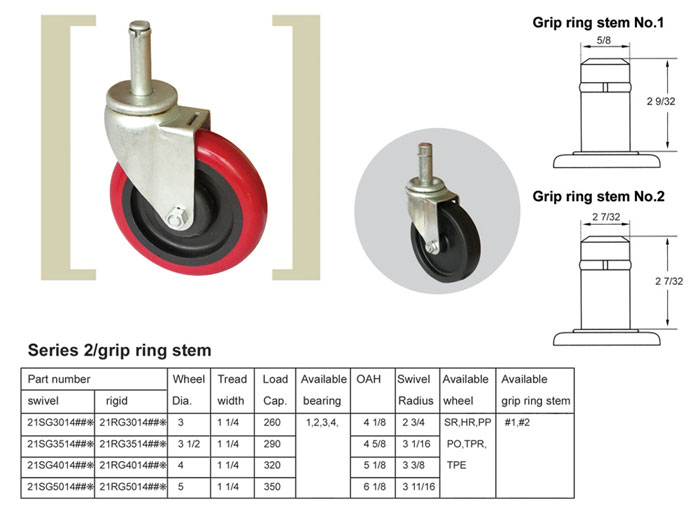

Series 2/grip ring stem

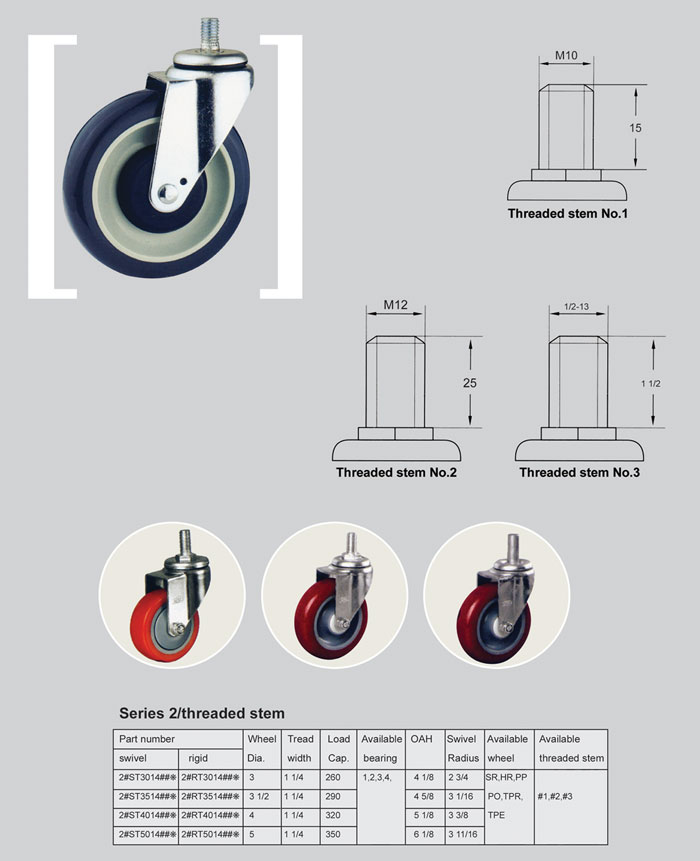

Series 2/threaded stem

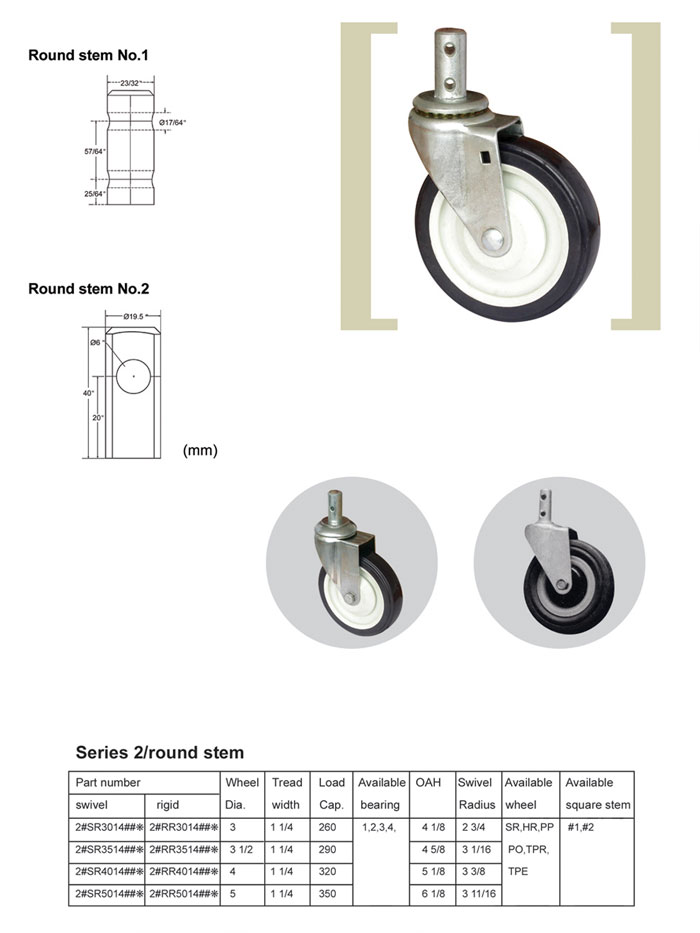

Series 2/round stem

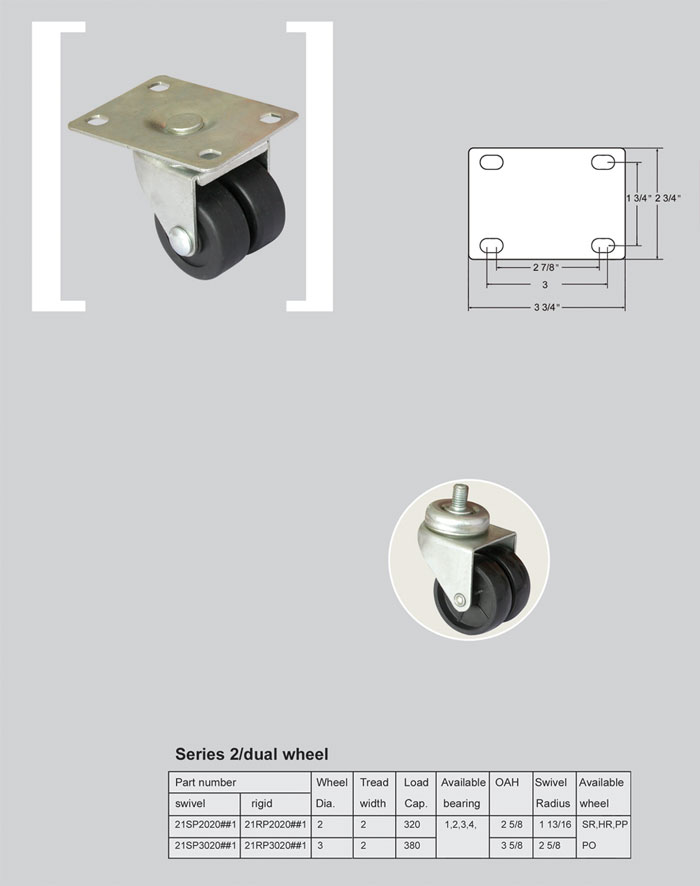

Series 2/dual wheel

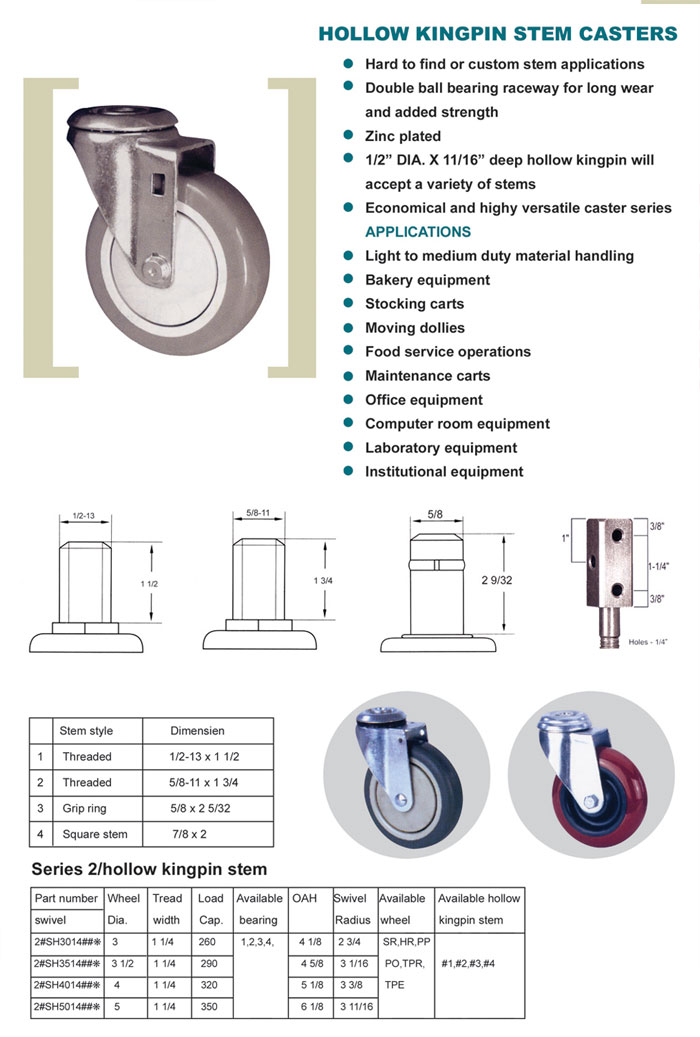

Series 2/hollow kingpin stem

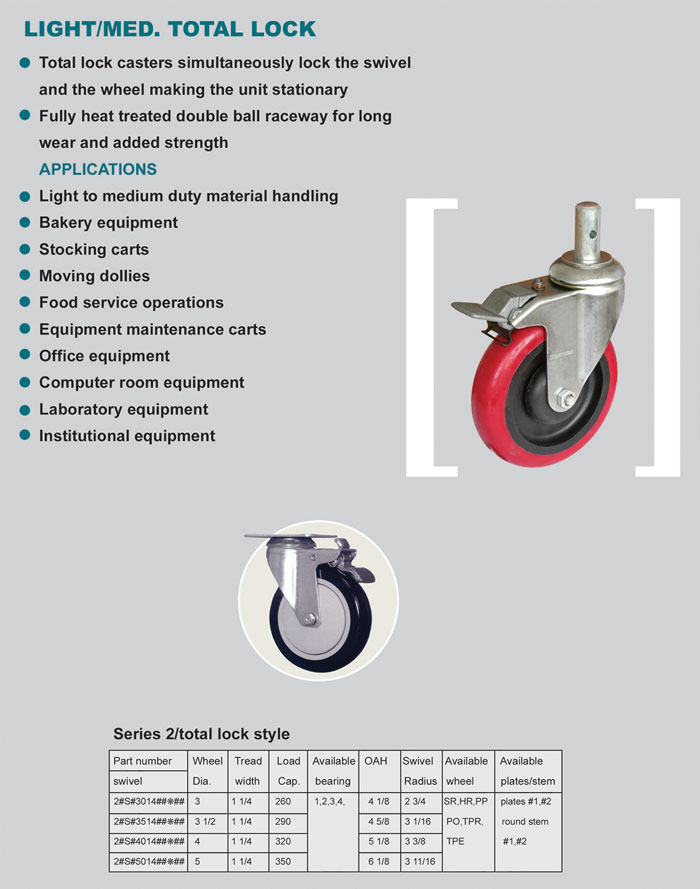

Series 2/total lock style

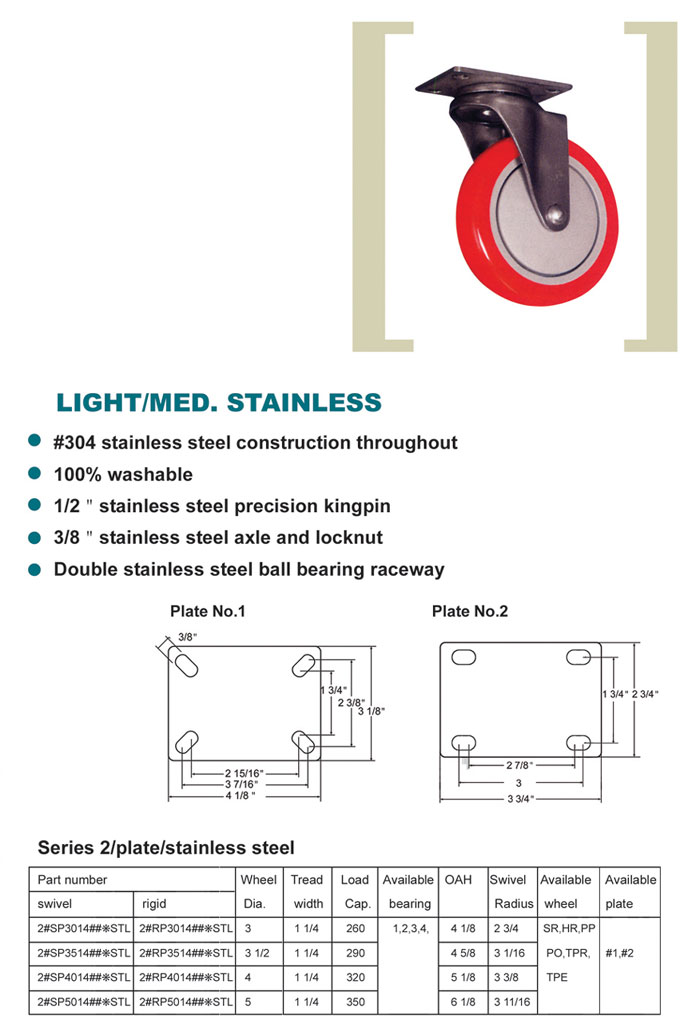

Series 2/plate/stainless steel

::: SERIES 3 :::
MEDIUM/HEAVY DUTY CASTERS
·Double ball bearing raceway for long wear and  added strenght
 双珠盘轴承结构
·Zinc plating standard(black oxide finish     available)
 亮锌处理
·5/8" bolted kingpin
 5/8" 规格铆钉
·Top plate and yoke 1/4" cold forged steel
 使用6mm钢板
·1/2" diameter axle with lock nut
 1/2" 螺栓与螺母
·3/4" roller bearings with hardened outer raceway
 3/4" 热处理滚针轴承
·Hardened spanner bushing with hole and grease   groove
 带油槽与油孔的热处理套管
·Grease fitting in swivel raceway
 珠盘上安装油嘴
·Wide selection of wheel types
 轮子的多种选择性
 应用 APPLICATIONS
·Platrorm trucks
 平板车
·Warehouse carts
 仓储车
·Dollies(Machinery)
 滚轮(机械设备)
·Stork picking trucks
 物品包装车
·Freight terminal carts
 货站搬运车
·Food service carts
 食品服务车
·Hotel/housekeeping carts
 宾馆、饭店用车
·Excellent series for industrial and commercial
 良好的工商业系列用车
·Medium/heavy duty equipment
 适用中、重负载设备

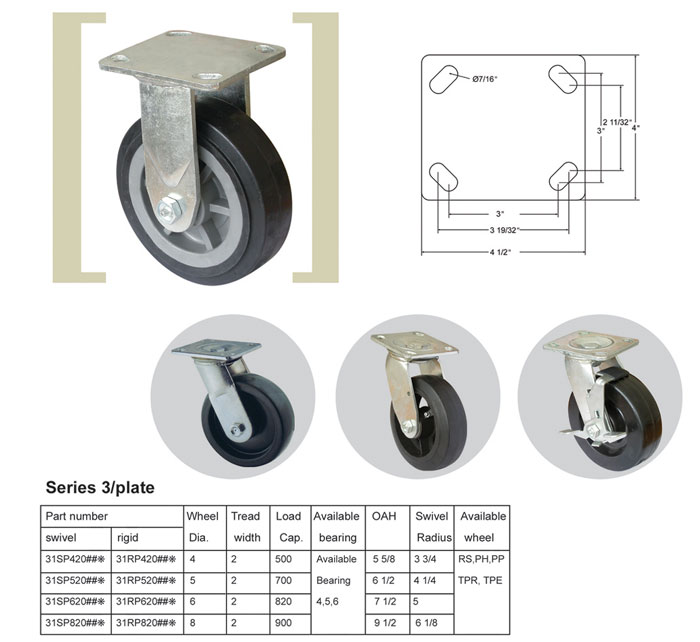

Series 3/plate

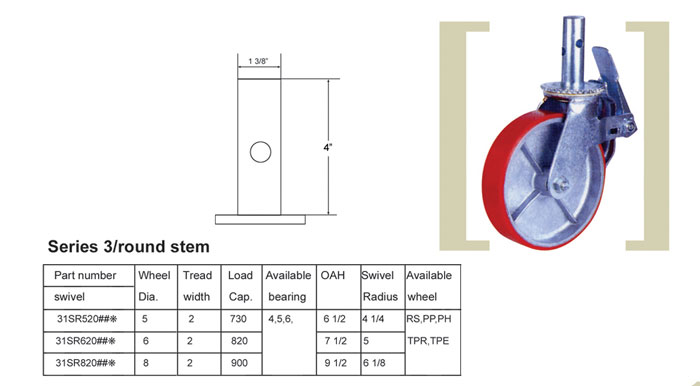

Series 3/round stem

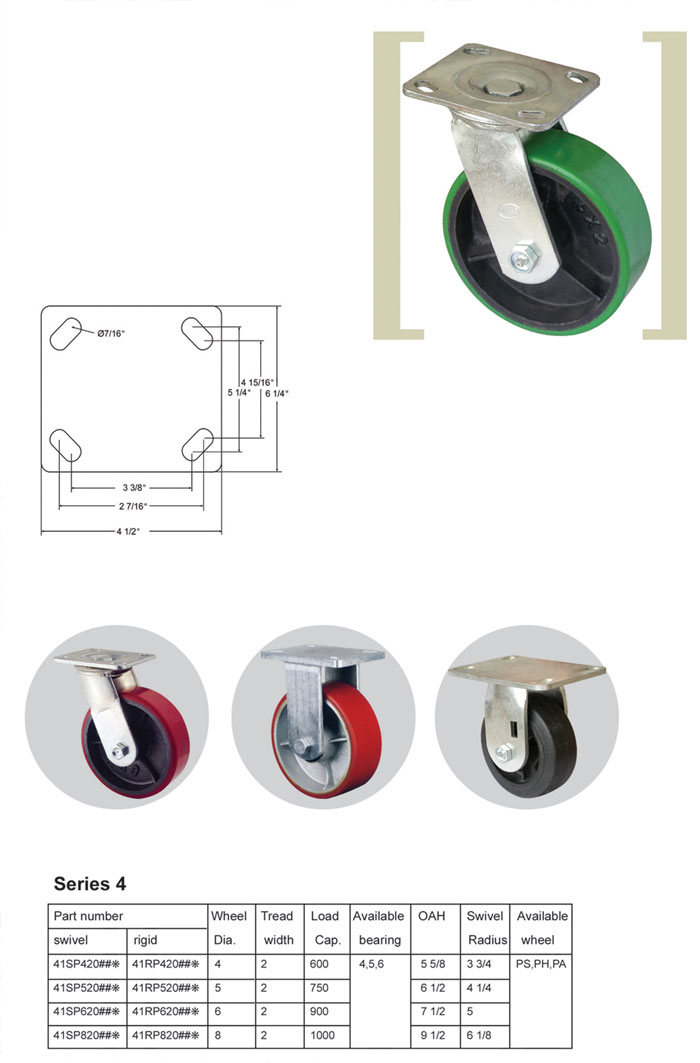

::: SERIES 4 :::
HEAVY DUTY ROP FORGED
·Heavy duty hot forged 1045 steel top plate and  yoke
 铸钢制造
·Deeply grooved double ball bearing raceway
 深槽双珠盘结构
·Bright zinc plated
 亮锌处理
·3/8" double weld,rounded edge steel legs
 3/8" 双面焊接
·3/4" head treated kingpin and nut
 3/4" 螺栓与止螺母
·Hardened and ground spanner bushing with grease  hole and groove
 带油槽与油孔的热处理套管
·Grease fitting in yoke base
 轮架上装有油嘴
Series 4
